Mechanical & Stamping-Die Design
For buyers with an idea, a sample or an old part, but no production drawing or tooling yet.
Start here if you have an idea, a sample or an old part but no production drawing or tooling yet. ALG designs it in TopSolid and delivers a 3D model (STEP) and 2D drawings.
Deliverables
Send us
Sketch, photos or sample, quantity, material if known.
Anything missing can be identified during review. We ask only for the missing details.

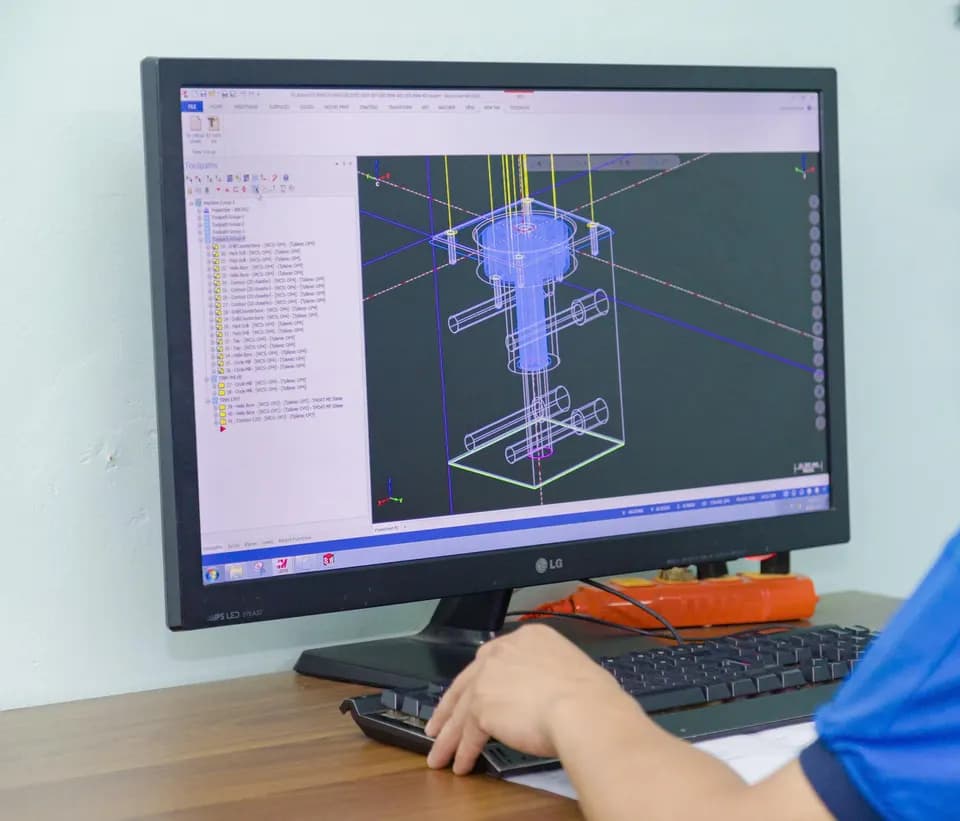

Representative imagery
Representative photos from partner factories and suppliers; not a specific ALG project.
From request to start
- STEP 1Send your request with drawings, photos or samples.
- STEP 2We review it and ask only for missing details.
- STEP 3You receive a written quotation from the ALG team.
- STEP 4Design work starts after your approval.
Short answers
What do I receive?
A 3D model (STEP) and 2D drawings (PDF / DWG), designed in TopSolid.
Which dies do you design?
Single, compound and progressive dies, with a design-for-manufacturing review before tooling is made.
What should I send?
A sketch, photos or a sample, the quantity and the material if you know it.
Request a design quote
Choose the service, send the details, and the ALG team will review and reply with a written quotation.
Request a design quote
